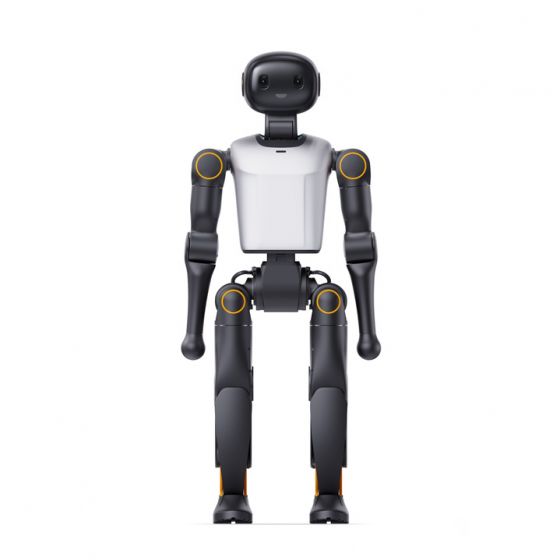

Booster K1 Humanoid Robot
An Introductory Embodied Development Platform.
A full-size humanoid robot built for middle school, high school, undergraduate, and research environments. Affordable. Portable. Durable. Powerful enough for serious development.
See It In Action
Key Capabilities
Walking Abilities
Forward, backward, lateral, rotational, and omni-directional locomotion.
Push & Fall Recovery
Withstands 15 N·s impact without falling. Active fall and autonomous get-up.

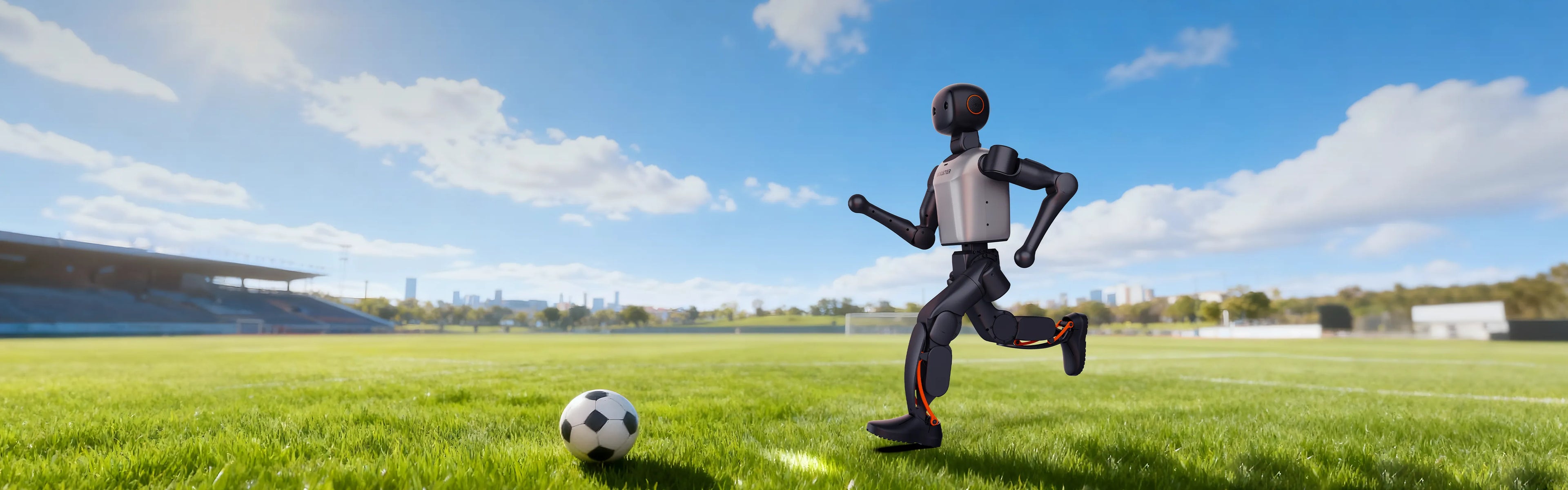

Soccer Skills
Real-time perception, autonomous decisions, self-localization on the field.
Motion Library
Pre-loaded Kung-Fu and dance choreography. Expandable via SDK.

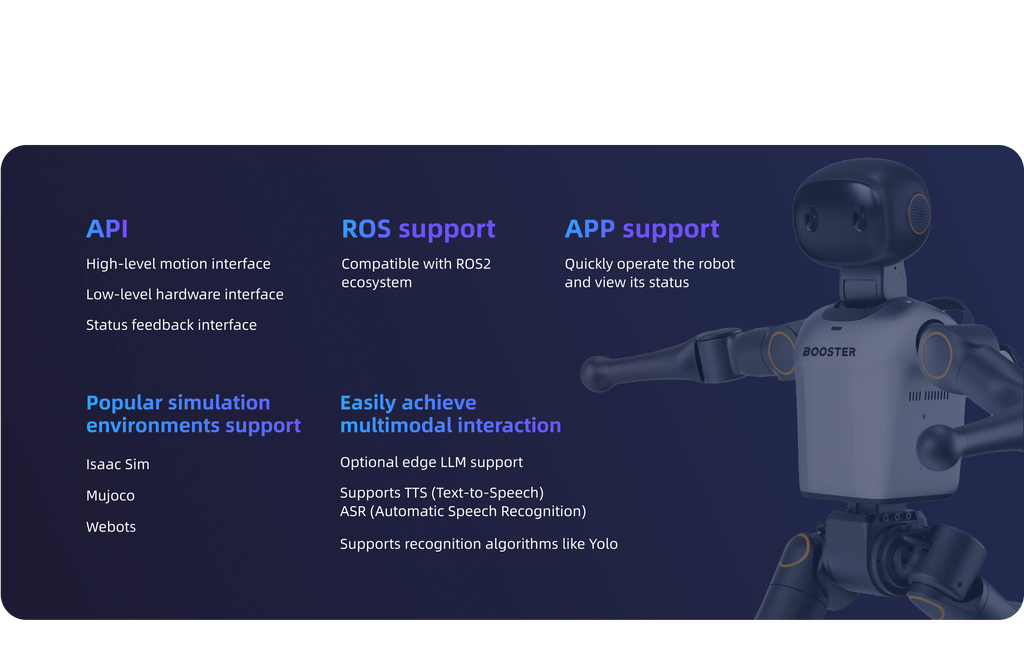

Software & Development
- SDK with high-level motion, low-level hardware, and status feedback APIs
- C++, Python, and ROS2 ecosystem fully supported
- Simulation support for Isaac Sim, MuJoCo, and Webots
- Edge LLMs, TTS, ASR, and YOLO recognition for multimodal AI
- Built-in reinforcement learning framework
- Mobile app for full robot control and monitoring
- Secondary development supported and firmware upgradable
Recognition
RoboCup 2025 Champion
KidSize category champion and runner-up at RoboCup 2025.
2x IEEE-RAS Champion
First place in racing and obstacle avoidance at IEEE-RAS Humanoids.
Featured by NVIDIA
Showcased at NVIDIA's Spring Festival, signed by Jensen Huang.
Global Certifications
FCC, CE, KC, WPC, and UN38.3 certified for worldwide deployment.
Curriculum Included
- 48 course hours spanning 5 core majors
- Robotics Engineering, Artificial Intelligence, Automation, Computer Science, and Mechanical Engineering
- Shared textbooks and hands-on modules
- Optional practice and competition tracks (16, 32, or 48 credit hours)

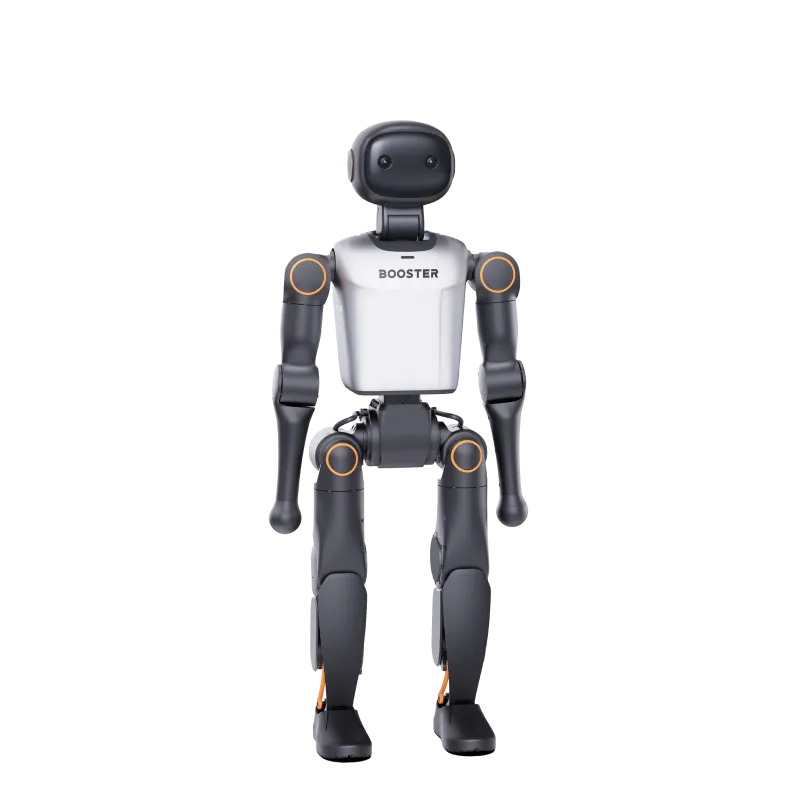

Full Specifications
| Size | 95 × 40 × 18 cm |
| Height | About 0.95 m |
| Weight | About 19.5 kg |
| Total Degrees of Freedom | 22 (Leg: 6, Arm: 4, Head: 2) |
| Max Knee Joint Torque | 60 N·m |
| Joint Encoder | Dual Encoder |
| Compute | Nvidia Jetson Orin (100-200 TOPS AI performance) |
| Vision | Stereo Depth Camera |
| IMU | 9-axis |
| Audio | Circular 6-Mic Array + Speaker |
| Battery | 48V / 2-5Ah depending on model |
| Battery Life | 30-80 min walking (model dependent) |
| Connectivity | WiFi 6, Bluetooth 5.2, Gigabit Ethernet (RJ45) |
| Development | C++, Python, ROS2. Firmware upgradable. Secondary development supported. |
| Certifications | FCC, CE, KC, WPC, UN38.3 |
| Warranty | 1 Year (EDU / Professional models) |
Interested in the Booster K1?
Email info@chakimo.com to request information, a demo, or a custom quote for your school, university, or research lab.
